UPS-UPS Power Systerm-Online LED Online UPS6KVA-20KVA
|
|
| Model No.︰ | T series |
| Brand Name︰ | ZLPOWER |
| Country of Origin︰ | China |
| Minimum Order︰ | 10 pc |
|
|
|
|
|
|
|
UPS-UPS Power Systerm-Online LED Online UPS6KVA-20KVA
Product Features
IP/OP: 220/230/240VAC 50/60Hz
IP/OP: 380/220VAC 50/60Hz
KEY FEATURES
True online double conversion technology
Wide input voltage range
Zero transfer time
Protection against all types of power problems
No add-on CNTL unit required for parallel connection
Low initial investment and flexible for future expansion
Highest reliability and maximum performance for power sharing and redundancy
Equipped with maintenance bypass switch
Smart RS232 and intelligent slot interface
Sealed lead acid, maintenance free battery
APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc
Product performance
TECHNICAL SPECIFICATION
ModelT6KT6KLT10KT10KL3T10KL3T15KL3T20KL
Capacity6KVA/4200W10KVA/7000W15KVA/10500W20KVA/14000W
InputNominal Voltage220V380V
Voltage Range176~276VAC304~478VAC
Frequency46~54Hz/56~64Hz
OutputVoltage220/230/240(1±1%)VAC
Frequency50/60Hz(adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz): Battery Mode: 50Hz(1±0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode:60Hz(1±0.2%)
Current Crest Ratio3：1
Output Wave FormSine Wave
Back-up TimeFull Load≥7′Depends on the capacity of the external batteries bank≥5′Depends on the capacity of the external batteries bank
Half Load≥20′≥13′
Battery Nominal Voltage240VDC
Transfer Time0ms
Overload Capacity105%~130% 10min, over 150%1min
CommunicationRS-232+Intelligent Slot
Operating EnvironmentTemperature0C~40C
Humidity15%~90%
Dimensions(W*D*H)mm260*570*717
Net Weight(Kg)90359338395555 |
|
|
|

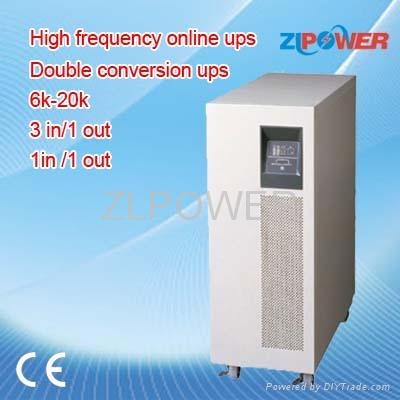

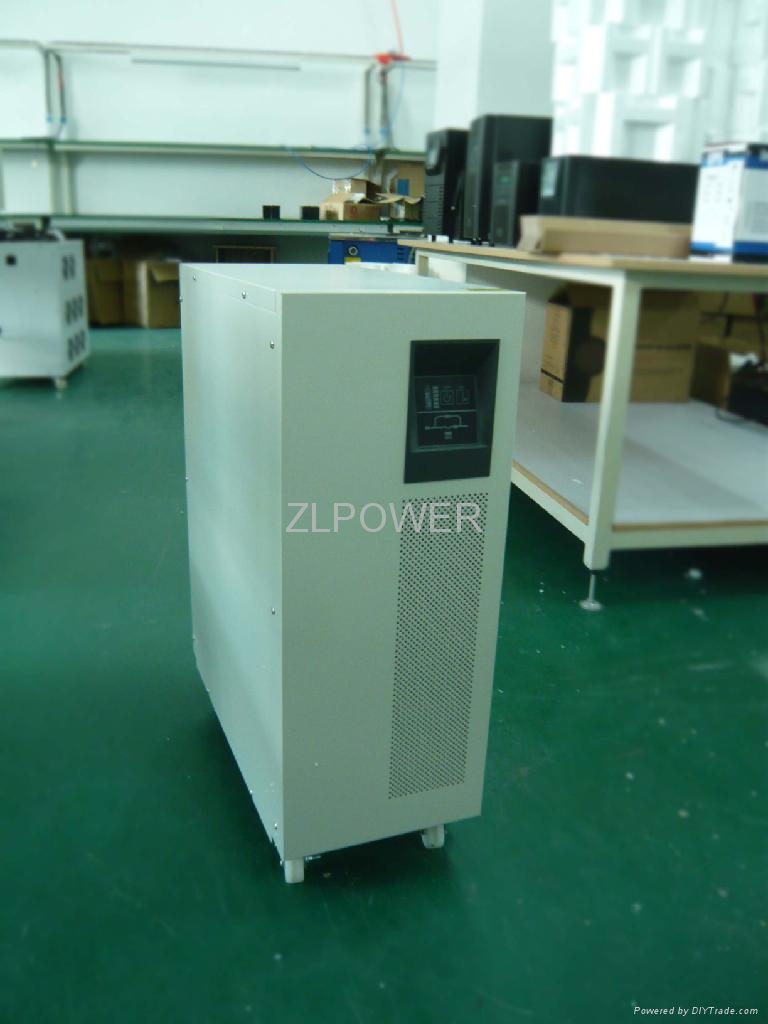

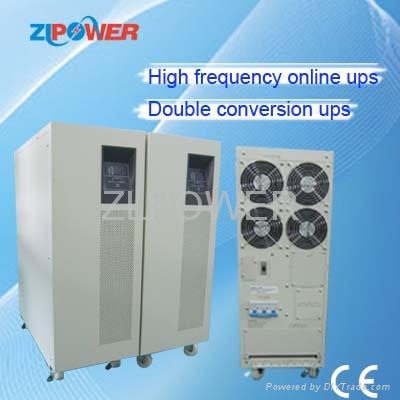

Product Image
|
|
|
