UPS Power: Standby off-line UPS with RJ11/RJ12/RJ45 RS232
|
|
| Model No.︰ | N400-N1500 |
| Brand Name︰ | ZLPOWER |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
UPS Power: Standby off-line UPS with RJ11/RJ12/RJ45 RS232
|
|
| Product Name： |
Offline UPS with AVR |
| Model |
N400-N1500 |
 |
Product Features |
|
|
IP/OP: 110/220VAC 50/60Hz
IP/OP: 110/220VAC 50/60Hz
KEY FEATURES
Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Function & Characteristic:
AVR,Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
APPLICATION
Home, computer, printer, POS,Comouter Peripherals
|
|
 |
Product performance |
|
|
TECHNICAL SPECIFICATION
| MODEL |
N400 |
N500 |
N650 |
N800 |
N1000 |
N1200 |
N1500 |
| Nominal Capacity |
400VA/240W |
500VA/300W |
650VA/390W |
800VA/480W |
1000VA/600W |
1200VA/720W |
1500VA/900W |
| Input |
Voltage Range |
145~280VAC/ 80VAC-150VAC |
| Frequency |
50/60Hz |
| Output |
Voltage Range |
220VAC/120VAC ±10% |
| Frequency |
50Hz/60Hz ±5% |
| Output Waveform |
Square Wave |
| Transfer time |
< 10ms |
| Battery |
Type |
Sealed free maintenance lead acid battery |
| Capacity |
12V,4AH *1PCS |
12V,7AH *1PCS |
12V,7AH *1PCS |
12V,9AH *1PCS |
12V,7AH *2PCS |
12V,9AH *2PCS |
12V,9AH *2PCS |
| Recharge Time |
8 hrs to 90% of capacity full load discharge |
| Protection |
Auto protect |
| Back-up time( Full load ) |
3~5 min |
5~7 min |
7~10 min |
6~8 min |
5~7 min |
8~10 min |
10-12min |
| Function |
Auto voltage output on AC mode, Auto shutoff if short circuit or overload |
| DB-9 port,communication software |
Optional RS232, RJ11, RJ45, USB |
| Protection |
AC mode |
Fuse |
| Short circuit |
AC |
Fuse |
| Invert mode |
Auto protect |
| Alarm |
Alarm |
Battery discharge |
Alarm beeps every four seconds |
| Low battery voltage |
Alarm beeps every second |
| Overload |
Alarm beeps continuously |
| Indicator light |
Auto adjust |
Green lighting: AC mode |
| Battery Discharge |
Red lighting: Battery mode |
| Environment |
Operating temperature |
0℃~40℃ |
| Operating Humidity |
0-90% non-condensing |
| Noise |
＜35dB（1 meter distance） |
| UPS Dimension（L×W×H）mm |
325*90*150 |
335*100*150 |
345*125*190 |
| Net weight (N.W) |
4.5KG |
6.5KG |
6.8KG |
7.5KG |
11KG |
12KG |
13KG |
| Gross weight (G.W) |
4.7KG |
6.7KG |
7KG |
7.7KG |
11.3KG |
12.3KG |
13.3KG |
|
|
|
|
|
|

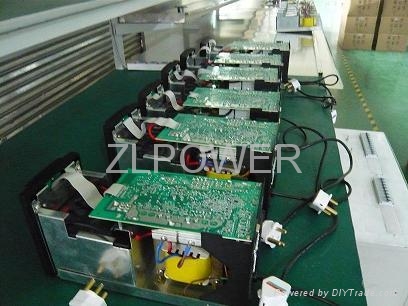

Product Image
|
|
|
