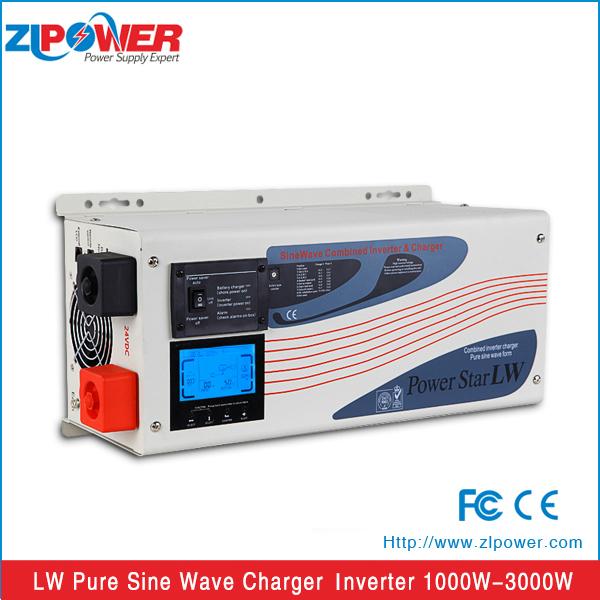

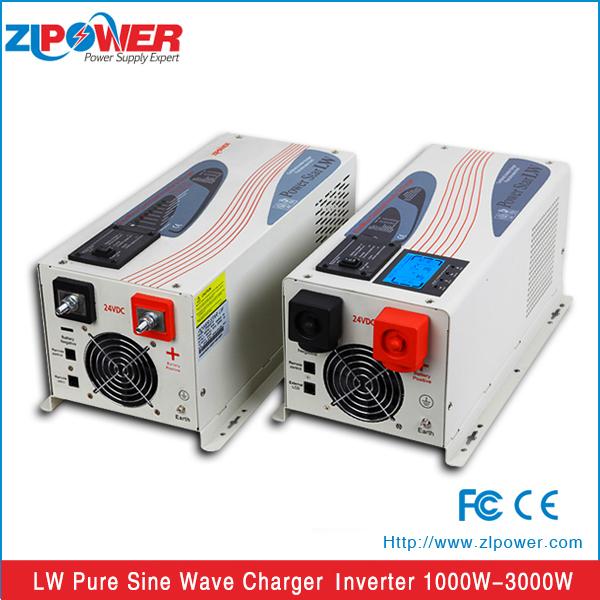

Pure sine wave solar inverter off grid inverter 1000w-12000W
Solar inverter with 70AMP built in AC charger.
UPS function
Voltage 110/120/230 and 220/230/240VAC 50Hz or 60Hz adjustable via LCD
Capacity available from 500W, 750W, 1000W, 1500W, 2000W, 3000W, 4000W, 5000W, 6000W, 7000W and 8000W
Peak Power: 3 times as rated Power
Optional remote control, Bypass, and Auto-reconnection
This inverter is widely applied in wind Generator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of main power, mobile electricity work also telecommunications device, launch Station, Emengency EPS and so on.
LW Series Pure Sine Wave Inverter takes low frequency converter Device, with built in Isolation transformer. Zero Voltage(ZV) and soft switch technic, high capability Motorola MCU, digital and dummy combined technics which Complete the voltage increase in one time and SPWM wave modemed Advanced circuit, high efficiency and compact size, small weight And super stability
It has no repellency for the load, which can work well with Inductive load such as fluorescent lamp, electromotor, microwave ovens, Induction cooker, refrigerator, air conditions and transformer.
With protection fonction like, DC input protect When pole wrong, AC input protection against over and low voltage, Output protection against over load, shor circuit Protection, DC input and AC output completely electric insulation.
|
MODEL
|
LW-1000
|
LW-1500
|
LW-2000
|
LW-3000
|
LW-4000
|
LW-5000
|
LW-6000
|
|
Nominal Power
|
1000W
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|
AC Input
|
|
Phase &
waveform
|
Single phase & Pure Sine Wave
|
|
Voltage
|
110/120/130VAC or 220/230/240VAC
|
|
Acceptable Voltage
|
95-126VAC or 194-253VAC±4%
|
|
Low Line Disconnect
|
85VAC±4% or 184VAC±4%
|
|
Low Line Re-connect
|
95VAC±4% or 194VAC±4%
|
|
High Line Disconnect
|
136VAC±4% or 263VAC±4%
|
|
High Line Re-connect
|
126VAC±4% or 253VAC±4%
|
|
Frequency
|
50Hz:41-54Hz 60Hz:51-64Hz
|
|
AC Output
|
|
Phase & waveform
|
Single phase & Pure Sine Wave (bypass mode sync to input)
|
|
Voltage
|
110/120/130VAC or 220/230/240VAC±10%rms (bypass mode sync to input)
|
|
Frequency
|
50Hz±0.3Hz 60Hz±0.3Hz (bypass mode sync to input)
|
|
Peak Power
|
3 times of rating power
|
|
Short Circuit
Protection
|
Yes, shutdown after 10ms
|
|
Power Factor
|
0.9-1.0
|
|
DC Input
|
|
Battery Voltage
|
12VDC or 24VDC or 48VDC
|
|
Minimum Start
Voltage
|
10VDC or 20VDC or 40VDC
|
|
Low Battery Alarm
|
10.5±0.3vdc or 21±0.6vdc or 42±1.2vdc
|
|
Low DC input
Shut-down
|
10±0.3vdc or 20±0.6vdc or 40±1.2vdc
|
|
High DC input Alarm & Fault
|
16±0.3vdc or 32±0.6vdc or 64±1.2vdc
|
|
High DC input
Recovery
|
15.5±0.3vdc or 31±0.6vdc or 62±1.2vdc
|
|
MAX Charger
Current
|
20A/35A/ 50A/75A/90A(According to the Inverter model)
|
|
System parameter
|
|
Battery Mode
Efficiency
|
>85%
|
|
Line Mode
Efficiency
|
>96%
|
|
power saver
|
Load <=25W (Enabled on “P/S auto” setting of Remote control)
|
|
Audible Alarm
|
Sounding when the heat sink’s tem is over 100℃ and shutdown after 30 seconds.
|
|
Over Load
Protection
|
110%
Load>150%, beeps 0.5s every 1s, and Fault after 20s.
|
|
Protections
|
low battery、over charging、over temp、over load
|
|
Communications
|
RS-232/USB/SNMP(custom-made)
|
|
Operating Environment
|
0-40℃,0-90%RH(non-condensing)
|
|
Audible Noise
|
<60dB
|
|
Net Weight(KG)
|
16kg
|
18kg
|
20kg
|
25kg
|
39kg
|
42kg
|
49kg
|
|
Dimension L X W X H
|
470 X223 X185mm
|
650 X223 X185mm
|
